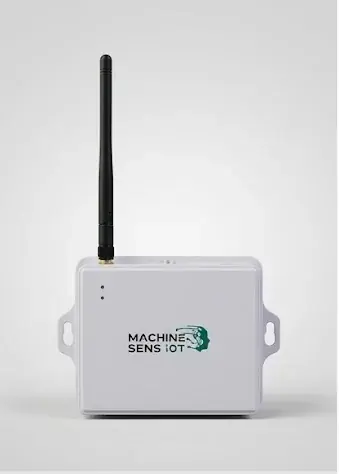

IO Connect Mini is a wireless mini I/O controller from MachineSens IoT with four channels. It reads one analog input and one digital input, and controls one relay and one analog output. It connects over LoRaWAN EU868, MQTT or Wi-Fi and feeds the BuildOT One platform.
| Specification | Detail |
|---|---|
| I/O channels | 4: 1 AI (0 to 10V or 4 to 20mA), 1 DI, 1 relay (5A 250VAC), 1 AO |
| Connectivity | LoRaWAN EU868, MQTT, Wi-Fi |
| LoRaWAN range | 500 m indoor, 2 km outdoor |
| Operating temperature | -20C to +65C |
| Mounting | Wall mount enclosure |
| Platform | BuildOT One |
What the IO Connect Mini Wireless I/O Controller does
- Reads field signals. Connect a 0 to 10V or 4 to 20mA sensor, plus one digital contact.
- Switches equipment. The 5A relay and analog output control pumps, valves and small loads.
- Works wirelessly. LoRaWAN removes long control cable runs.
- Suits small jobs. Four channels cover single-point monitoring and control.
Where it is used
Pump rooms, water tanks, small plant rooms, villas and retrofit projects across the UAE and GCC. It fits where a full controller is more than the job needs.
Works with BuildOT One
IO Connect Mini sends data to Energy and Utilities and AirBMS for monitoring and control. Data Integration links it to other systems.
Browse the Sustainability and utilities range. Related products include the IO Connect Controller and the Energy Meter.
Frequently asked questions
How many channels does it have?
Four: one analog input, one digital input, one relay and one analog output.
What is the wireless range?
About 500 m indoors and 2 km outdoors over LoRaWAN.
What temperatures can it handle?
From -20C to +65C.
Need pricing or a datasheet? Request a quote
