Energy Eye Wireless Energy Meter
Energy Eye Wireless LoRa® Power Meter
| Brand Name | Energy Eye 3 Phase |
|---|---|
| Model Number | MSEEDIN3PH |
| Display Type | Mini LCD Display |
| Display scrolling | Automatic |
| Dimensions | 155mm×84mm |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
Where it sits in your building
This productEnergy Eye 3-Phase DIN Rail MeterThis productEnergy Eye 3-Phase DIN Rail MeterThis productEnergy Eye 3-Phase DIN Rail Meter
The Energy Eye 3 Phase meter (model MSEEDIN3PH) is a DIN rail electricity meter that measures voltage, current, kW, power factor and kVAh for each phase. It reads up to 50A through internal CTs and up to 5000A with external CTs. Data goes over Modbus or LoRaWAN to BuildOT One for live energy tracking.
Accurate measurement of energy and wireless data transmission through LoRaWAN™ protocol.
Take control of your energy consumption with our highly accurate and reliable IoT enabled energy meter featuring internal CTs supporting Modbus and LoRaWAN protocol for tracking energy usage and optimizing costs.
Introducing EnergyEye, the cutting-edge energy meter that transforms the approach to measuring and monitoring electricity consumption.
Equipped with internal CTs (Current Transformers), EnergyEye facilitates direct current measurement of up to 50A, extendable up to 5000A with external CTs.
Compliant with Modbus and LoRaWAN protocols, this energy meter delivers exceptionally accurate and dependable electrical energy measurement.
It enables tracking of critical parameters like power factors, generated reactive power, and peak loads, empowering users to optimize energy utilization and enhance operational processes.
Energy Measurement Applications
residential
retail
hospitality
healthcare
commercial real estate
online energy monitoring
Product Features
Easy data collection and management
with advanced RS485 communication and 868 MHz LoRaWAN wireless capabilities
Easy to install and operate.
making it a great choice for energy monitoring and management
Automation & System Integrate
Integrate Energy Metering data into existing Building Management systems and applications
Real-time clock
for tracking energy consumption over time
Alerts and events
on configured parameters through the Energy Management Platform

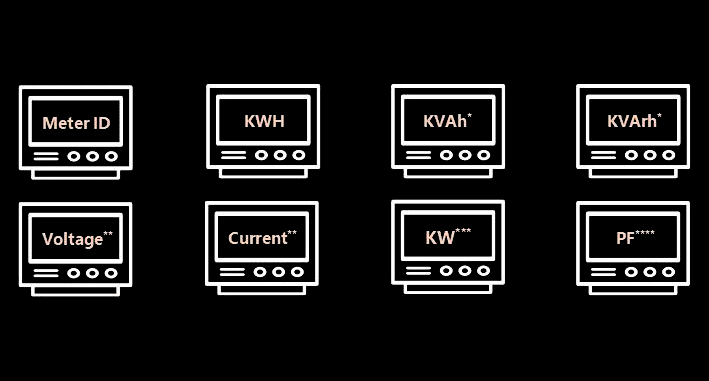

Accurate measurement of energy parameters
* Cumulative forwarded KVAh and cumulative forwarded KVArh
** instant voltage & current for each phase
*** instant load KW for each phase and total
**** instant power factor (PF) for each phase and total
Technical Specification
| Brand Name | Energy Eye 3 Phase |
|---|---|
| Model Number | MSEEDIN3PH |
| Display Type | Mini LCD Display |
| Display scrolling | Automatic |
| Dimensions | 155mm×84mm |
| Communication | Modbus and LoRaWAN 1.0.2 |
| Phase | Three Phase |
| Voltage | Three Phase, 4 Wire input, 3×230/380V |
| Current Rating | 100A-5000A (External CTs), Up to 50A (Internal CTs) |
| Auxiliary Power Supply | AC/DC 85V~265V or AC/DC 115~415V |
| Starting Current | 0.2% |
| Frequency Range | 45 – 65 Hz |
| Measuring Energy Range | 0 – 99999 kWh |
| Pulse constant | 4000 (5A) imp/kWh |
| Accuracy | ± 1% for voltage, current and power Class 1 for active energy (Class 0.5S version also available) |
| Power Supply | Peak Voltage shall not exceed 3.6V, Power Consumption: ≤ 20mA |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 5% to 95%RH |
| Storage Temperature | -40°C to +85°C |
| Installation Category | III |
| Mounting | DIN rail |
| Weight | 600 gms |
| Isolation | Strong and Weak Electricity are isolated by Transformer. Isolation withstand voltage upto 2500V |
| Environment | No explosion, corrosive gas, conductive dust, and areas with significant vibration. |
