IO Connect Wireless Building Automation Controller
IO Connect Multi-purpose Controller
| Number of I/O Ports | 18/30 |
|---|---|
| Analog Input | 4 Channels / 8 Channels |
| 0-10VDC | |
| Industrial Current Sensor | 4 – 20mA Range |
| 4 Channels |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
Where it sits in your building
This productIO Connect ControllerThis productIO Connect ControllerThis productIO Connect Controller

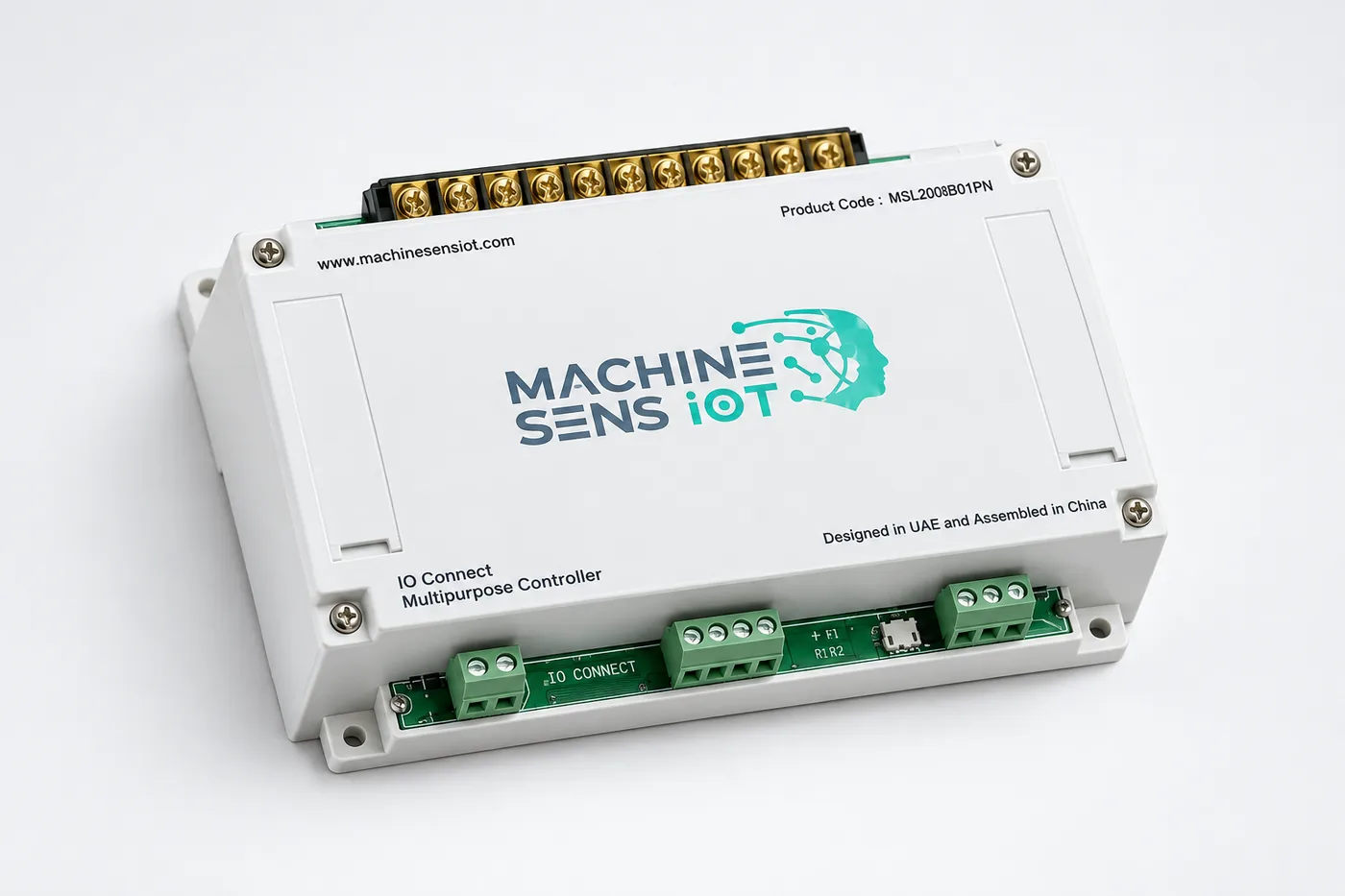

IO Connect is a multipurpose I/O and relay controller with 18 or 30 ports for analog inputs, 4-20 mA sensors, digital inputs and relay outputs. It mounts on a DIN rail or wall, connects over LoRaWAN or Wi-Fi, and supports BACnet and Modbus. BuildOT One uses it to monitor and switch pumps, fans and other equipment.
Advanced I/O & Relay controller for a wide range of automation and wireless IoT applications
MachineSens IoT® IO Connect is the next generation multipurpose I/O and relay controller designed to streamline your automation needs. From industrial settings to smart building applications, IO Connect offers unparalleled versatility and reliability.
IO Connect empowers you to effortlessly manage a wide range of devices and systems and seamlessly integrate with sensors, actuators, switches, motors, pumps, ventilation fans, and more, while leveraging its robust relay functionality for precise control over your operations. Its modular design and expandable I/O channels offer flexibility and customization options.
IO Connect can be mounted either on a DIN rail with a DIN rail housing or directly mounted in an IP Rated Control panel board.
This device can be configured to support numerous industry standard protocols such as BACnet™, Modbus RS485, TCP/IP etc and wireless communication through LoRaWAN® and Wi-Fi.
Building Automation Management Product Features
Automated Building Management Systems enhance efficiency and sustainability by integrating advanced building automation management services in UAE. These intelligent solutions optimize energy consumption, streamline operations, and ensure seamless control over HVAC, lighting, security, and access systems. With real-time monitoring and predictive maintenance, businesses experience reduced operational costs and enhanced safety. Designed for smart infrastructure, these systems offer unparalleled convenience, helping organizations comply with regulations while improving occupant comfort and overall building performance.
Customizable I/O & Relay module configuration
Wireless data transmission Option through LoRaWAN®, and/or WIFI
Secure operation with top-down encryption (Wireless models)
Supports control of both AC & DC powered devices
Suitable for Centralized Control and Monitoring of broad range of devices & system
Integration with Building Management System (BMS) and Industrial Automation systems
Control Board Specifications
| Technical | |
|---|---|
| Number of I/O Ports | 18/30 |
| Analog Input | 4 Channels / 8 Channels |
| 0-10VDC | |
| Industrial Current Sensor | 4 – 20mA Range |
| 4 Channels | |
| Digital Inputs (Fully Isolated) | 4 Channel / 8 Channels |
| 5KV Isolation | |
| 3.3-24VDC logic level supported | |
| Relay Output | 4 Channels / 8 Channels |
| Dry contact support (5A-250VAC) | |
| NO Type output | |
| USB Interface | Standard Micro USB port |
| Serial communication | UART Active for Data communication and monitoring |
| Input Power | 230V AC / 5V DC (1000mA) |
| Reset Option | Onboard Reset available |
| Wireless Communication | LoRa/LoRaWAN |
| 863-868 Mhz | |
| Full OTAA (Supported for Uplink and Downlink) | |
| Default Uplink active interval (60 sec). | |
| Device Class | Class A |
| Wi-Fi | 2.4 GHz with WPA2 security |
| Operating Temperature | -20°C to + 65°C |
| Relative Humidity | 0% to 85% RH (non-condensing) |
| Mounting Options | Wall & DIN Rail |
| Dimensions | 155mm X 84mm |
Extensible Relay Board Specifications
The extensible relay board supports extending the IO Connect multipurpose controller’s standard 4 Channel/8 Channel relay outputs with additional relay outputs based on customized project requirements offering scalability.
Relay board can be provided with 5A,10A & 16A current rating based on the relay output connected load.
| Technical | |
|---|---|
| Operating Temperature | -40°C to + 70°C |
| Contact Arrangement | 1A, 1B, 1C |
| Contact Resistance | 50 mOhms (at 1A 24VDC) |
| Max. Switching Voltage | 240V |
| Max. Switching Current | 5A, 10A and 16A |
| Certifications | |
|---|---|
| Regulatory | CE |
| Environmental | RoHS |
