Pulse Convert+ is a BACnet IP and MQTT protocol gateway built on a fanless industrial PC. It reads data from BACnet devices in an existing BMS and publishes it as JSON over MQTT with TLS 1.2. It can also expose MQTT data as BACnet objects, which is how BMS data and BuildOT One share information.
| CPU | Intel® I5 4200U (3M Cache, up to 2.60 GHz) Intel® I7 4500U (4M Cache, up to 3.30 GHz) |
|---|---|
| Chipset | SOC |
| Network Card | 2 x Intel 82574L 10/100/1000 gigabit ethernet nics |
| Wi-Fi | With dual antennas, 802.11ac 2.4+5Ghz |
| Bluetooth | BT 4.0/4.2 |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.

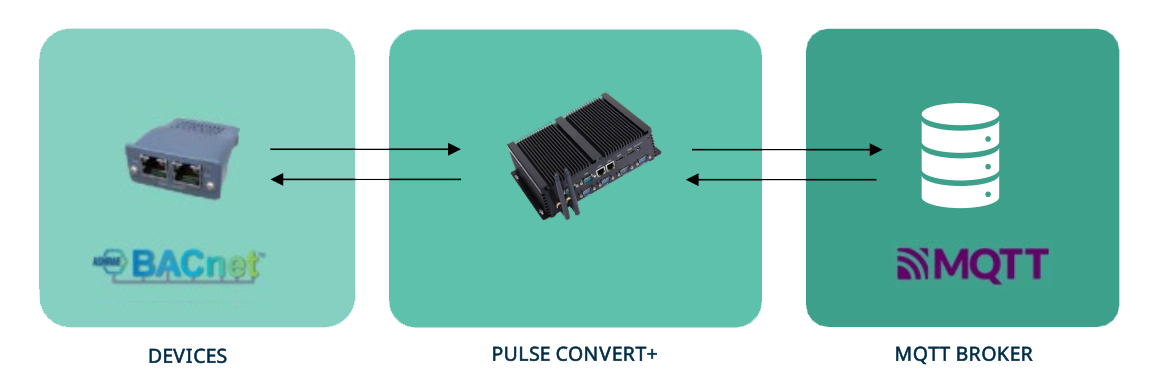

Pulse Convert+ is a versatile and robust protocol converter designed to seamlessly integrate BACnet devices into an MQTT infrastructure. It enables BACnet-based systems, such as HVAC, lighting, energy management and security systems, to communicate with MQTT devices for efficient remote monitoring and control. With support for TLS v1.2, it ensures secure, encrypted MQTT communication.
Built on an industrial-grade fanless PC, Pulse Convert+ is suitable for both commercial and industrial applications. Its flexible configuration allows it to function as a BACnet Client/Master, MQTT Subscriber, BACnet Server, and MQTT Client. This versatility supports data collection from BACnet devices and secure publishing over MQTT for remote clients, while also enabling remote commands to control field devices.
Pulse Convert+ scales easily to connect multiple devices and brokers, making it ideal for networks of any size. Its compact design ensures easy installation, providing a powerful yet straightforward solution for optimizing building automation and control systems.
Gather data from geographically distributed BACnet devices and transmit it securely over MQTT for centralized remote management.
Integrate HVAC, lighting, and security systems into an MQTT infrastructure for centralized monitoring, control, and data analytics, enhancing operational efficiency.
Enable seamless communication between BACnet-based industrial equipment and MQTT systems for efficient control, predictive maintenance and process control.
Simplify the integration of diverse building systems into a single platform for remote diagnostics, maintenance and performance tracking.
This productPulse Convert+ BACnet and MQTT Gateway| Motherboard | |
|---|---|
| CPU | Intel® I5 4200U (3M Cache, up to 2.60 GHz) Intel® I7 4500U (4M Cache, up to 3.30 GHz) |
| Chipset | SOC |
| Network Card | 2 x Intel 82574L 10/100/1000 gigabit ethernet nics |
| Wi-Fi | With dual antennas, 802.11ac 2.4+5Ghz |
| Bluetooth | BT 4.0/4.2 |
| Memory (RAM) | 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM |
| Storage | 256 GB SSD 1TB HDD |
| Software | |
|---|---|
| Bios | AMI Bios |
| System Support | Windows 10, Linux ubuntu etc |
| General | |
|---|---|
| Cooling Mode | Fanless |
| Power Supply | 100-240V AC, 50-60 Hz, or 12V DC (3-5A) |
| Auto Power On | Enabled |
| I/O Interfaces | |
|---|---|
| Front Panel | 1 x Power button 4 x USB3.0 4 x USB2.0 1 x Audio |
| Rear Panel | 1 x DC Input 2 x HDMI 2 x LAN 6 x COM RS232 2 x Wi-Fi antennas |
| Mechanical | |
|---|---|
| Material | Aluminum Alloy |
| Colour | Black |
| Size | 175 x 210 x 45mm |
| Weight | 3 Kgs |
| Installation Method | With mounting ears |
| Environment | |
|---|---|
| Operating Temperature | 0°C~70°C Centigrade (32°F~158°F) |
| Storage Temperature | -20°C~80°C Centigrade (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Ventilation | Required |
| Standards | |
|---|---|
| Certification | CE, RoHS |
