Convert+
Modbus RS485 to LoRaWAN® converter
Convert+ is a Modbus RS485 to LoRaWAN converter. It reads up to 12 Modbus RTU registers from a meter or controller and sends them over LoRaWAN EU868, up to 2 km in urban areas. This lets existing wired devices report to BuildOT One without running new cable back to a panel.
| Power Supply | 5V DC Type C Port, 5-24V DC terminal block |
|---|---|
| Power Connector | Type C, 3.5mm Terminal Block |
| Material | ABS Housing |
| IP Class | IP30 |
| Operating temperature | -10 °C to +60 °C |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
An Intelligent IoT device for Remote control & Data acquisition.
The Convert+ Modbus RS485 to LoRaWAN® converter serves as a sophisticated IoT controller designed for remote control and data acquisition from devices supporting the Modbus RS485 protocol.
The acquired data is transmitted through the LoRaWAN® network. With a transmission range extending up to 5-10 km in rural areas and 2 km in urban settings, it accommodates various frequency bands.
The converter is equipped with a built-in Modbus RS485 to LoRaWAN® Converter, facilitating effortless configuration and management.
This versatile solution is ideal for diverse industrial and IoT applications, including energy monitoring, smart agriculture, and industrial IoT.

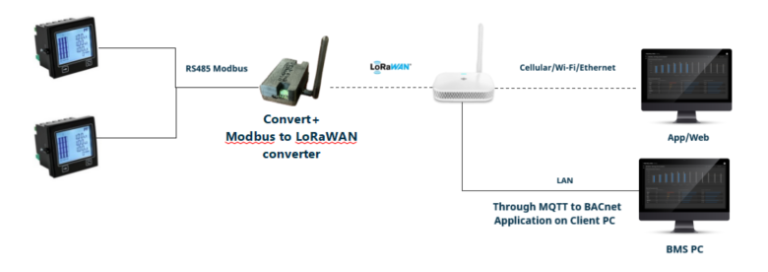

Application Example
Already installed
Modbus RS485 controllerExisting equipment
Modbus RTU
Converter
This productConvert+ Modbus RS485 to LoRaWANThis productConvert+ Modbus RS485 to LoRaWANLoRaWAN EU868
On site
MQTT or BACnet
Data goes to
BuildOT OneOr your BMS
Product Features
- Support data collection from up to 12 Modbus Registers.
- Compliant with standard LoRaWAN® gateways and servers.
- Integrated Watchdog ensuring the stability of device operation.
- Local & Remote configuration options.
- Compatible with a wide range of frequency bands. (EU868/US915/CN470/RU864/IN865)
Specifications
| General | |
|---|---|
| Power Supply | 5V DC Type C Port, 5-24V DC terminal block |
| Power Connector | Type C, 3.5mm Terminal Block |
| Material | ABS Housing |
| IP Class | IP30 |
| Operating temperature | -10 °C to +60 °C |
| Storage temperature | -20 °C to +70 °C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Environment | Indoor |
| Mounting Options | Wall Mounted |
| Dimensions | 92mm X 56mm X 30mm |
| Power Consumption | <0.45W |
| Configuration | Via PC software |
| Configuration Port | Type C |
| Device Reset | Internal Reset Button |
| Wireless Communication | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | EU868 (868 Mhz) |
| Tx Power | 16dBm (868 MHz) |
| Sensitivity | -137dBm @300bps |
| Device Class | Class C |
| Activation Method | OTAA (Over-The-Air Activation) |
| Antenna | External |
| Data Interface | |
|---|---|
| Port | RS485 |
| Port Connector | 3.5mm Terminal Block |
| Protocol | Modbus RTU, support reading 12 register values |
| Baud Rate | 1200~115200 bps |
Also in the Convert+ family
Convert+ products bring existing wired equipment online without new cabling: Modbus RS485 meters and controllers over LoRaWAN or 4G LTE, and BMS points over BACnet and MQTT.
Gateways and convertersConvert+ family
Pulse Convert+ BACnet and MQTT Gateway
Pulse Convert+ is a BACnet IP and MQTT gateway that links BMS devices to IoT platforms and BuildOT One, with TLS 1.2 security on a fanless industrial PC.
Project quotePriced per project
Frequently asked questions
How many Modbus registers can Convert+ read?
It reads up to 12 Modbus RTU register values, at baud rates from 1200 to 115200 bps.
What is the wireless range of Convert+?
It reaches about 2 km in urban areas and 5 to 10 km in rural areas over LoRaWAN.
How is Convert+ powered?
It takes 5V DC through USB-C or 5-24V DC through a terminal block, and it draws less than 0.45W.
