Edge Pro Outdoor LoRaWAN Gateway
8 or 16 channel Outdoor LoRaWAN Gateway
Edge Pro is an outdoor LoRaWAN gateway with 8 or 16 channels in an IP67 enclosure for pole or wall mounting. It collects data from LoRaWAN sensors across a site and sends it over Ethernet, Wi-Fi or optional LTE. A built-in network server and MQTT bridge deliver the data to BuildOT One.
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
Where it sits in your building
This productEdge Pro Outdoor LoRaWAN GatewayBest in class outdoor gateway
Edge Pro is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability.
Supports up to 16 LoRa channels, multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options, solar panels, and batteries. With its new enclosure design, it allows the LTE, Wi-Fi and GPS antennas to be inside the enclosure.
The gateway firmware is based on the latest OpenWRT kernel and accommodates the latest security updates like IPv6, OpenSSL 1.1 support, multiple accounts access, and more. The web UI has a fresh new look, with more user-friendly information tooltips.
Thus, the EDGE PRO is suited for any use case scenario, be it rapid deployment or customization with regard to UI and functionality.
Product Features
| Hardware | Software | |
| IP67/NEMA-6 industrial-grade enclosure with cable glands | Built-in Network Server | |
| PoE (802.3af) + Surge Protection | OpenVPN | |
| Dual LoRa Concentrators for up to 16 channels | Software and UI sit on top of OpenWRT | |
| Backhaul: Wi-Fi and Ethernet | Full LoRaWAN Stack support with Semtech SX1303 | |
| GPS | LoRa Frame filtering (node whitelisting) | |
| Supports DC 12 V or solar power supply with electricity monitoring (Solar Kit optional) | MQTT v3.1 Bridging with TLS encryption | |
| Internal antenna for Wi-Fi, GPS, and LTE (LTE Version), external antenna for LoRa | Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss) | |
| Dying-gasp (optional) | Full-duplex (optional) and Listen Before Talk (optional) |
Main Specifications
| Computing | MT7628, DDR2 RAM 128 MB |
|---|---|
| Wi-Fi feature | Frequency: 2.4 GHz (802.11b/g/n) |
| Operation Channels | 2×2 MIMO |
| RX Sensitivity: -95 dBm (Min) | |
| TX Power: 20 dBm (Max) | |
| Operation channels: 2.4 GHz: 1-13 | |
| LoRa feature | SX1303 mPCIe card (connects maximum of two) |
| 8 Channels (16 channels optional) | |
| RX Sensitivity: -139 dBm (Min) | |
| TX Power: 27 dBm (Max) | |
| Listen Before Talk | |
| Frequency | EU433/CN470/EU868/US915/AS923/AS923-1/AS923-2/AS923- 3/AS923-4/AU915/IN865/KR920 |
| Power Supply | PoE (IEEE 802.3af) – 37~57 VDC |
| Cellular Feature (LTE Version) | Supports Quectel EG95-E/EG95-NA (IoT/M2M -optimized LTE Cat 4 Module) |
| EG95-E for EMEA Region (Europe, Middle East and Africa) | |
| WCDMA: B1/B8 | |
| GSM/EDGE: B3/B8 | |
| EG95-NA for North America Region | |
| LTE FDD: B2/B4/B5/B12/B13 | |
| WCDMA: B2/B4/B5 | |
| ETH | RJ45 (10/100 M) |
| Antenna | LoRa: 1 or 2 N-Type connectors |
| LTE: Internal antenna (LTE Version only) | |
| Wi-Fi: Internal antenna | |
| Ingress Protection | IP67 |
| Enclosure Housing | Aluminium and plastic |
| Operating Temperature | -30˚ C to +55˚ C |
| Operating Humidity | 0-95% RH non-condensing |
| Installation Method | Pole or wall mounting |
RF Specifications
Wi-Fi Radio Specifications
| Wireless Standard | IEEE 802.11 b/g/n |
|---|---|
| Operating Frequency | ISM band: 2.412~2.472 (GHz) |
| Operation Channels | 2.4 GHz: 1-13 |
| Transmit Power (The max power may differ depending on local regulations) – per chain | 802.11b 19dBm @1Mbps / 11Mbps |
| 802.11g 18dBm @6Mbps / 16dBm @54Mbps | |
| 802.11n (2.4G) 18 dBm @MCS0 (HT20) / 16 dBm @MCS7 (HT20) / 17 dBm @MCS0 (HT40) / 15 dBm @MCS7 (HT40) | |
| Receiver Sensitivity (Typical) | 802.11b -95dBm@1Mbps / -88dBm@11Mbps |
| 802.11g -90dBm@6Mbps / -75dBm@54Mbps | |
| 802.11n (2.4G) -89dBm@MCS0(HT20) / -72dBm@MCS7(HT20) / -86dBm@MCS0(HT40) / -68dBm@MCS7(HT40) |
LoRa Radio Specifications
| Operating Frequency | EU433 / CN470 / EU868 / US915 / AS923 / AU915 / IN865 / KR920 |
|---|---|
| Transmit Power | 27 dBm (Max) |
| Receiver Sensitivity | -139 dBm (Min) |

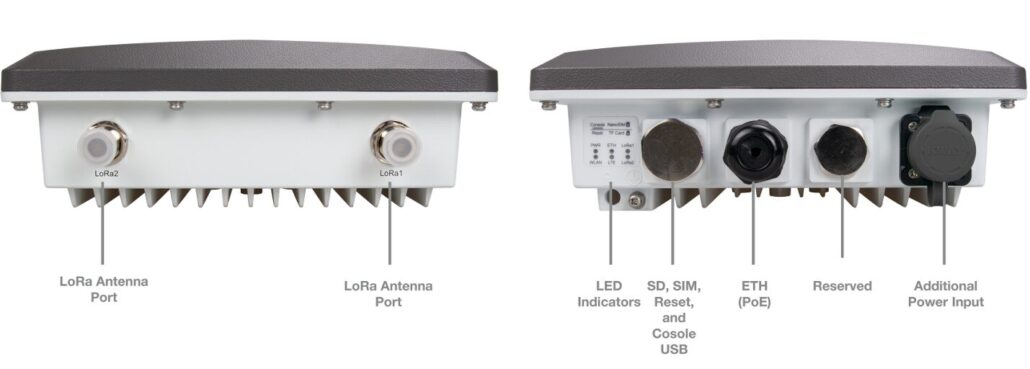

Interfaces
The function of the Reset key is as follows:
- Short press: Restart the gateway.
- Long press (5s and above): Restore factory settings.
LEDs status description:
| LED 1 (PWR) | Power indicator – The LED is on when the device power is on | |
| LED 2 (ETH) | ON – Linkup | |
| OFF – Linkdown | ||
| Flicker – Data transmitting and receiving | ||
| LED 3 (LoRa 1) | ON – LoRa 1 is working | |
| OFF – LoRa 1 is not working | ||
| Flicker – Indicate LoRa 1 Packet receiving and sending | ||
| LED 4 (WLAN) | AP Mode: | ON – The AP is up |
| Flicker – Data receiving and sending | ||
| STA Mode: | ON – Connected | |
| Slow flicker (1 Hz) – Disconnected | ||
| Flicker – Data receiving and sending | ||
| LED 5 (LTE) | ON – Voice is working | |
| Slow Flicker (1800 ms High / 200 ms Low) – Network searching | ||
| Slow flicker (200 ms High / 1800 ms Low) – Idle | ||
| Fast flicker (125 ms High / 125 ms Low) – Ongoing data transfer | ||
| LED 6 (LoRa 2 for 16 channel) | ON – LoRa 2 is working | |
| OFF – LoRa 2 is not working | ||
| Flicker – Indicate LoRa 2 Packet receiving and sending |
Standards
Frequently asked questions
What is the difference between 8 and 16 channels?
How is Edge Pro powered?
What happens if the network server goes offline?
