SpaceCheck. Presence Sensor
SpaceCheck is a ceiling-mounted presence sensor that uses 5.8 GHz microwave sensing to detect movement, slight motion and breathing. It has a built-in daylight sensor and a dry contact output, and runs on 12 or 24V DC. The output can feed a BMS or I/O controller, so BuildOT One can use occupancy for lighting and HVAC.
Advanced Space presence detection with daylight sensing.
SpaceCheck is an advanced presence detection solution engineered to enhance indoor environmental control and energy efficiency.
Utilizing state-of-the-art technology, the SpaceCheck sensor is adept at detecting human presence through various signals including movement, slight motion, and breathing. This sophisticated detection capability ensures that the sensor provides accurate and reliable performance, making it an indispensable tool for optimizing energy usage and improving the comfort and security of indoor spaces.
The sensor is ideal for use in a range of applications such as office spaces, residential buildings, and other indoor environments where precise human presence monitoring is crucial.
By integrating the SpaceCheck Sensor into building management systems, facilities can achieve significant energy savings, enhance security measures, and streamline operations.
Product Features
Advanced Detection Capabilities
Employs advanced Microwave technology to detect a wide range of human presence signals, including movement, slight motion, and breathing. This ensures that even the slightest human activities are accurately monitored.
Power Efficiency
Operates on 12V/24V DC with a stand-by power consumption of less than 0.5W, making it an energy-efficient solution
Versatile Output
Features a dry contact, normally open working mode with a resistive load capacity of 36V, 50mA max, suitable for various control applications.
Integrated Daylight Sensor
The built-in daylight sensor adjusts lighting based on ambient light levels with selectable thresholds (5lux, 25lux, 50lux, disable), contributing to further energy savings.
Customizable Settings
All parameters can be configured via DIP switches or remote control, allowing for tailored performance to meet specific application needs
Optimal Mounting
Designed for flush mounting, with a recommended height of 2.5-4 meters and a detection angle of 150°, ensuring comprehensive coverage.
Robust Design
Built to operate in a wide range of environmental conditions, with an operating temperature range of -25℃ to +50℃ and up to 85% humidity (non-condensing).
Specifications
General |
|
| Input Rated Voltage | 12/24V DC ±0.5V |
| Input Stand-by Power | <0.5W . |
| Output Working Mode | Dry Contact, Normal Open |
| Output Load Capacity | Resistive (36V, 50mA Max) |
| Operating Temperature | -25 °C to +50 °C |
| Operating Humidity | 0% to 85% (non-condensing) |
| Storage Temperature | -40 °C to +80 °C |
| Storage Humidity | 0% to 85% (non-condensing) |
| IP Rating | IP20 |
| Protection Class | Class II |
| Installation | Flush Mounted |
| Cut Out size | Ø65-Ø75mm |
| Wiring | Screw Terminal, Diameter: 0.75-1.5 Sq.mm |
| Warranty | 3 Years |
Sensors |
|
| Operating Frequency | 5.8 Ghz ±75 Mhz, ISM Band |
| Transmitting Power | 0.3mW Max |
| Hold Time | 5s/30s/1Min/3Min/5Min/10Min/20Min/30Min |
| Detection Area | 100%/75%/50%/25% |
| Daylight Sensor | 5lux/25lux/50lux/Disable |
| Detection Range (Radius) | Movement: 4-5m (Speed: 0.3m/s) Slight Motion: 4-5m Breathing: 3-4m |
| Detecting Angle | 150° |
Certifications | |
| Regulatory | CE |
| Environmental | RoHS |
Functions

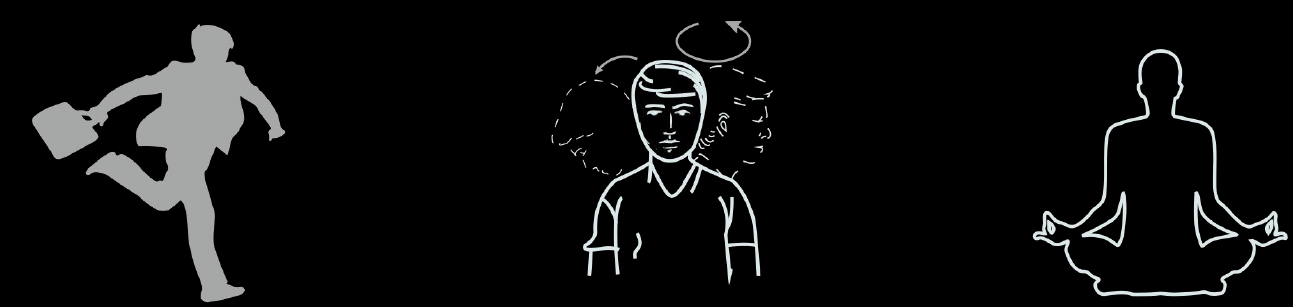

The sensor detects human walking, slight motion (such as body movement, turn up head and others minor movements) and breathing to realize the detection of human existence in non-sleep state.
- Movement signal: Major movement for sensor triggering.
- Slight motion signal: Very small movement even only body motion can be collected
the indicator flashes once. - Breathing signal: When no slight motion signal, only breathing signal can be
collected, the indicator flashes 3 times by detecting 3 effective breathing signals.
Movement Signal Active
Slight Motion & Breathing Signal Maintain
- Movement signal: Major movement for sensor triggering.
- Slight motion signal: Very small movement even only body motion can be collected
the indicator flashes once. - Breathing signal: When no slight motion signal, only breathing signal can be
collected, the indicator flashes 3 times by detecting 3 effective breathing signals.

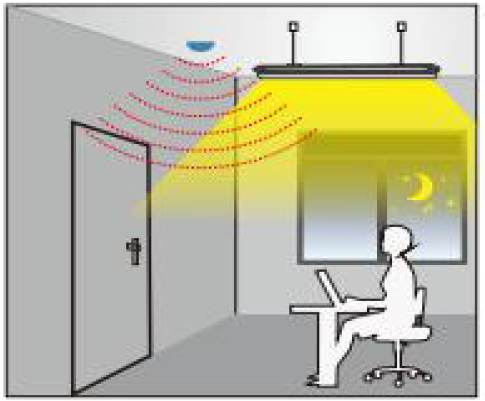

1

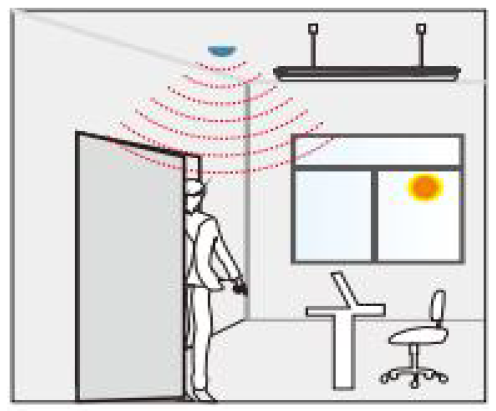

When ambient light is sufficient, the light will not turn on even when movement signal is detected.
2

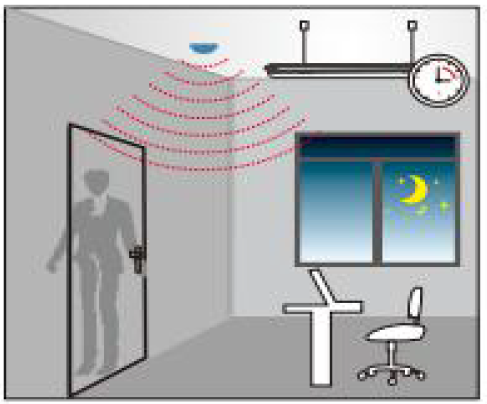

When ambient light is insufficient, the light will turn on automatically when movement signal is detected.
3
The body, head and other small movements during normal work can be detected and light will be on.
4
When the sensor fails to detect movement or slight motion, the light will automatically turn off after the delay time.

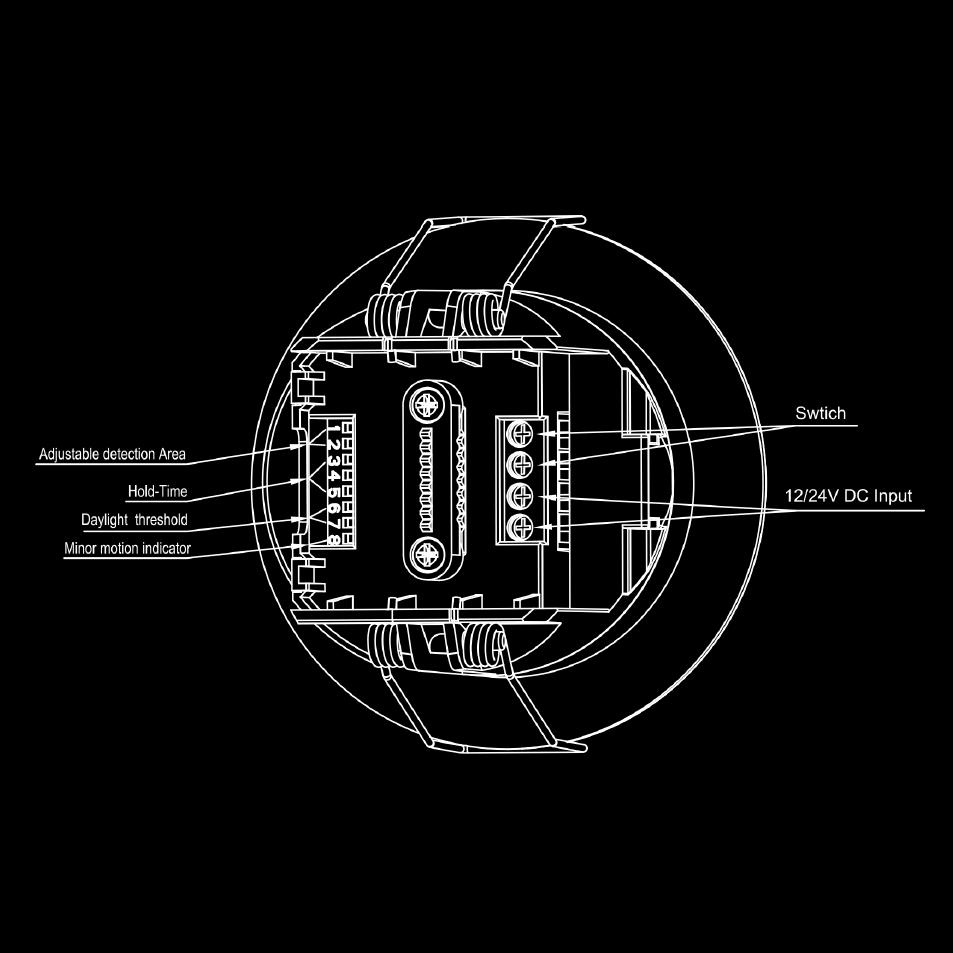

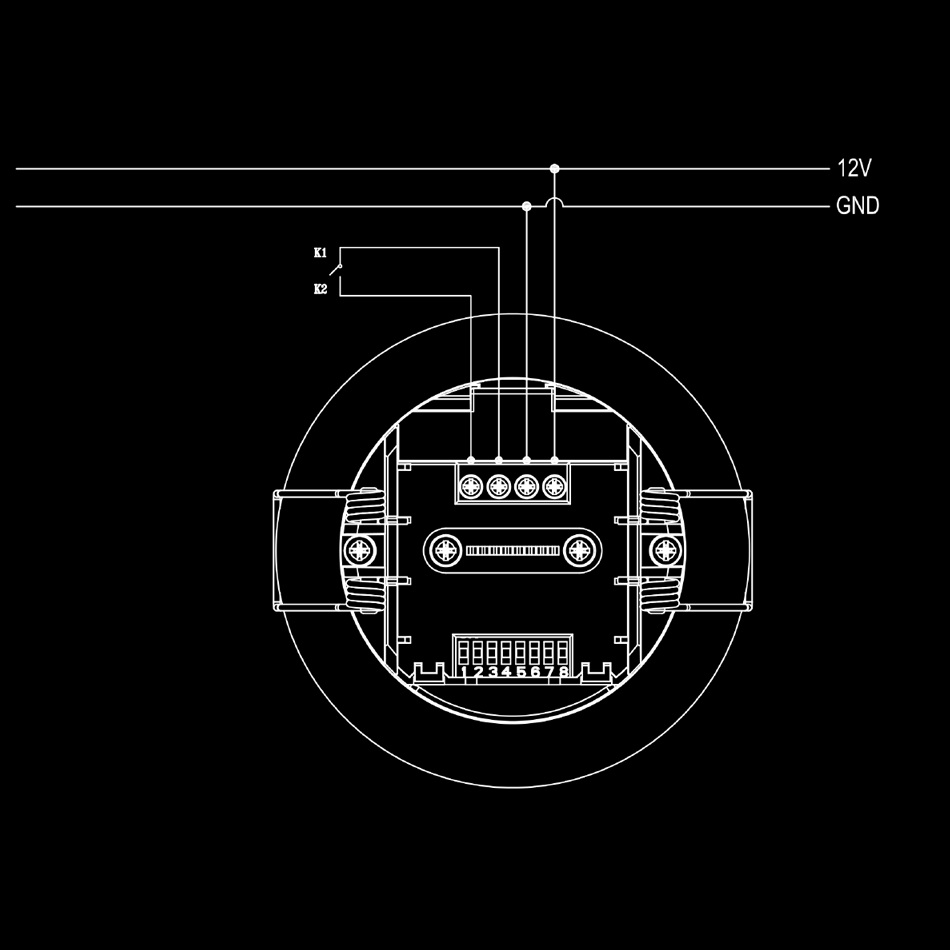

Wiring

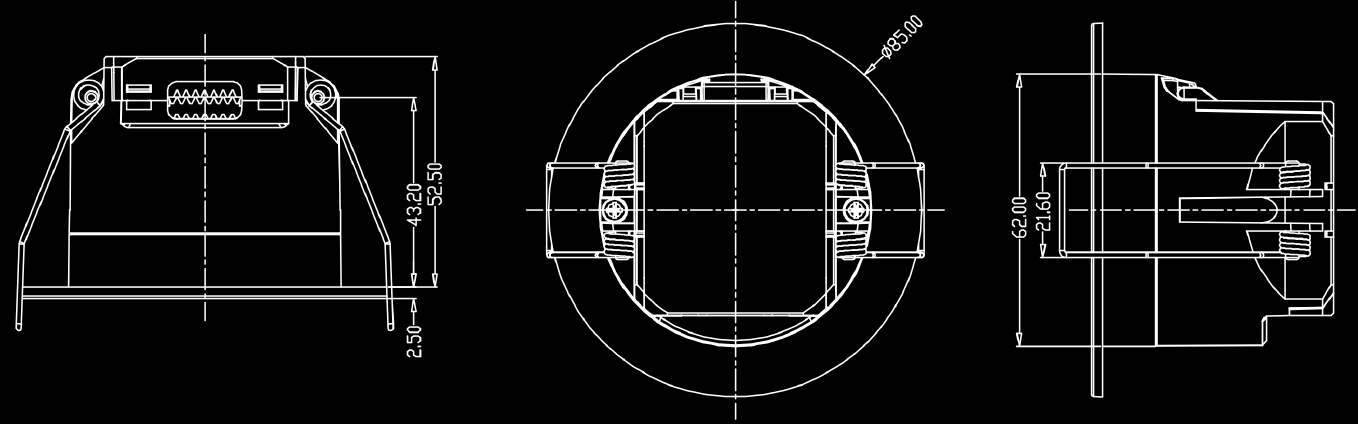

Dimensions (mm)

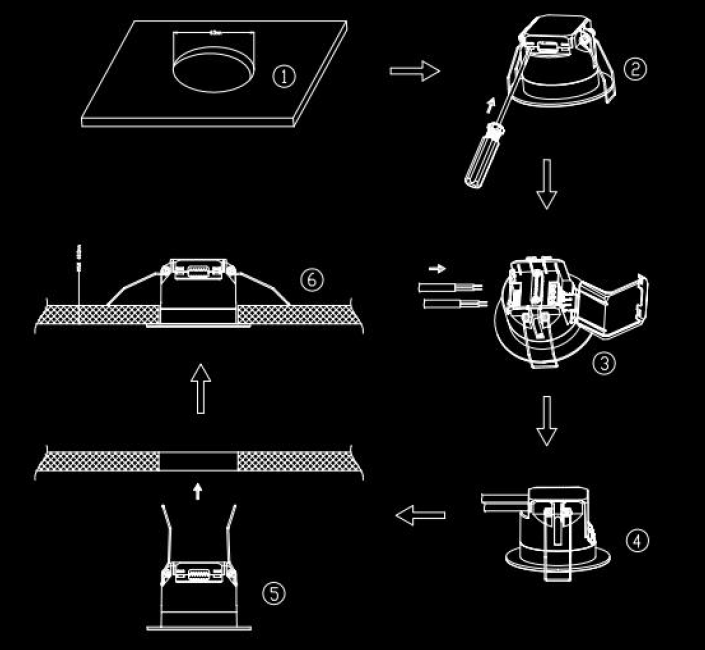

Installation
- Cut a hole of 65-75mm on the ceiling
- Open the button of the rotating protective cover
to the maximum state - Wiring (input & output)
- Install the screw of the line clasp and rotate the
protective cover on the cover - Bend the spring clamp backward to push the
pre-opened hole in the ceiling. Ensure a smooth and reliable installation.
Detection Pattern
DIP Switch Setting
1) Detection Area
| 1 | 2 | ||
| I | ON | ON | 100% |
| II | – | ON | 75% |
| III | ON | – | 50% |
| IV | – | – | 25% |
2) Detection Area
| 3 | 4 | 5 | ||
| I | ON | ON | ON | 5S |
| II | ON | – | ON | 30S |
| III | ON | ON | – | 1min |
| IV | ON | – | – | 3min |
| V | – | ON | ON | 5min |
| VI | – | – | ON | 10min |
| VII | – | ON | – | 20min |
| VIII | – | – | – | 30min |
Note: To achieve the presence sensor function (breath detection), it must set the hold time at least 1
minute(better longer), 5s for motion sensor test only.
3) Daylight Sensor
| 6 | 7 | ||
| I | ON | ON | 5LUX |
| II | ON | – | 25LUX |
| III | – | ON | 50LUX |
| IV | – | – | Disable |
Note: When set to “Disable”, regardless of whether there is sufficient light or not, the sensor will turn on the
light whenever movement is detected.
4) Indicator Light
| 8 | ||
| I | ON | open |
| II | – | close |
Note: The indicator light is On by default, and can be turned off by DIP switch or remote control LS button.
Factory Settings
Initialization

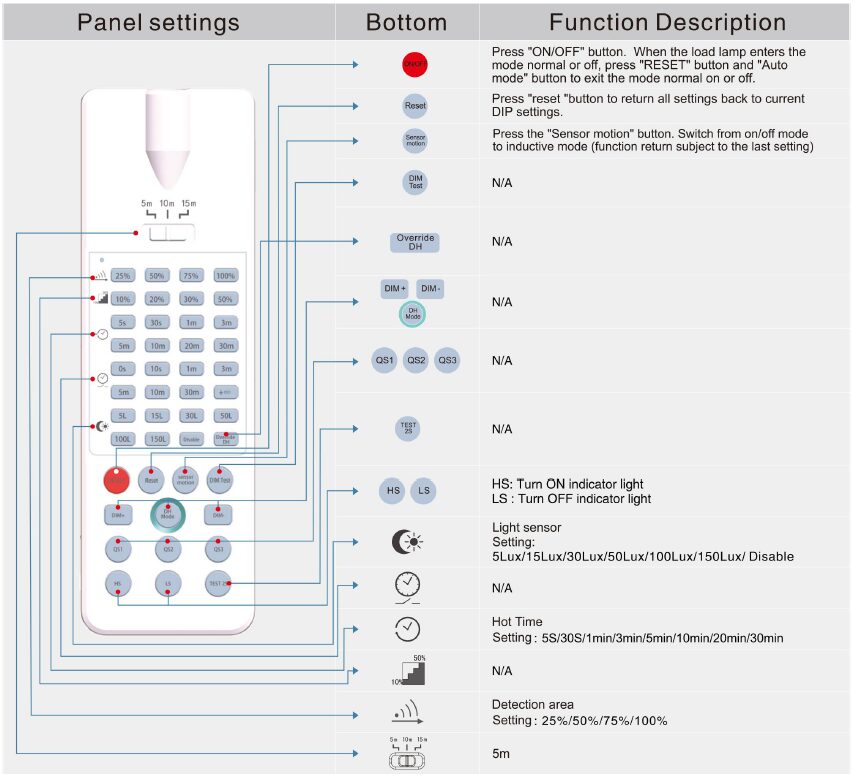

The first power on, sensor enter self-test mode, and the self-test will be completed after 20 seconds to enter the normal working state. During the initialization, the external motion signal will not be detected, remote control signal is not received.Remote Settings
Application Notice
1) The sensor should be installed by a professional electrician. Please disconnect the power before installing, wiring or changing the setting of the DIP switch.
2) Put the sensor as far as possible from large areas of metal plate, glass and other materials with high medium density to avoid triggering by mistake.
3) Avoid using objects that have been vibrating for a long time around the sensor, such as shaking fans, etc. The vibration signal will be regarded as the motion signal to trigger the sensor.
4) Avoid the detection window of the daylight sensor of the detector irradiated by an invalid light source, which will interfere with the measurement of ambient light.
5) The microwave sensor has a certain penetrating ability to the wall of the building, and the microwave penetrating to the outside of the wall may cause false alarm when it ACTS on the moving objects outside the fortified area. To avoid triggering by mistake, the installation position and appropriate induction range should be selected during installation.
6) The data on detection pattern is typical value tested in factory, the detection range could be affected by moving speed, installation height, motion object and different environment.
Frequently asked questions
What can SpaceCheck detect?
It detects walking movement up to 4-5 m radius, slight motion up to 4-5 m and breathing up to 3-4 m, across a 150° detection angle.
What hold time should I set for presence detection?
Set the hold time to at least 1 minute for breathing detection. The 5 second setting is for motion testing only.
How does the daylight sensor save energy?
When ambient light is above the chosen threshold (5, 25 or 50 lux), the light stays off even if movement is detected.
