AiroCheck Eco Monitor with Display
The AiroCheck Eco Monitor with Display is a wall-mounted indoor air quality sensor with a 4.2-inch E-ink screen that shows live readings to occupants. Versions measure 3, 7, 8 or 11 parameters, from CO2 and PM2.5 to noise and motion. It sends data over LoRaWAN to BuildOT One for dashboards, alerts and reports.
| Power Input | 5V DC |
|---|---|
| Material | ABS flame-retardant shell |
| Operating temperature | -10 °C to +60 °C |
| Relative Humidity | 0% to 95%RH |
| Environment | Indoor |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
Product Overview
AiroCheck Eco Monitor is a customizable and compact wireless indoor air quality sensor designed to measure and monitor various parameters in the air to assess the quality of the air we breathe. These sensors are valuable tools for detecting and quantifying environmental conditions, pollutants, and particulate matter, providing near real-time or periodic data on air quality conditions. The 4.2-inch E-ink display offered in the option with screen, with its ultra-low power consumption and broad viewing angle, presents real-time performance data, making it well-suited for assessing indoor environmental conditions and comfort.
AiroCheck Eco Monitor wirelessly provides near real-time and exceptionally accurate data through low-power, long-range communication. Utilizing this data and dashboards facilitates the monitoring and reporting of air quality performance. Versions available include:
Eco Monitor 3 in 1: Sensor for monitoring temperature, humidity and CO2 levels.
Eco Monitor 7 in 1: Sensor for monitoring temperature, humidity, CO2, TVOC, PM1, PM2.5 and PM10 levels.
Eco Monitor 8 in 1: Sensor for monitoring temperature, humidity, CO2, TVOC, PM1, PM2.5, PM10 and Ozone levels.
Eco Monitor 11 in 1: Sensor for monitoring temperature, humidity, CO2, TVOC, PM1, PM2.5, PM10, Ozone, Lux, Noise and Motion.
The sensors within Eco Monitor can also be customized to measure Dust,
Formaldehyde (HCHO), Oxygen (O2), Hydrogen Sulfide (H2S), Methane (CH4), Carbon Monoxide (CO), Nitrogen Dioxide (NO2), Sulphur Dioxide (SO2), Hydrogen Gas (H2), Ammonia (NH3) and THI for swift assessment of environmental conditions that may affect microbial activity such as bacteria and fungi.
Product Features
Customizable sensor configuration based on application requirement.
Wireless data transmission Option through LoRaWAN®, and/or WIFI wireless protocol
Secure operation with top-down encryption (Wireless models)
Easy Performance Management through MachineSens IoT Platform
Near real-time readings

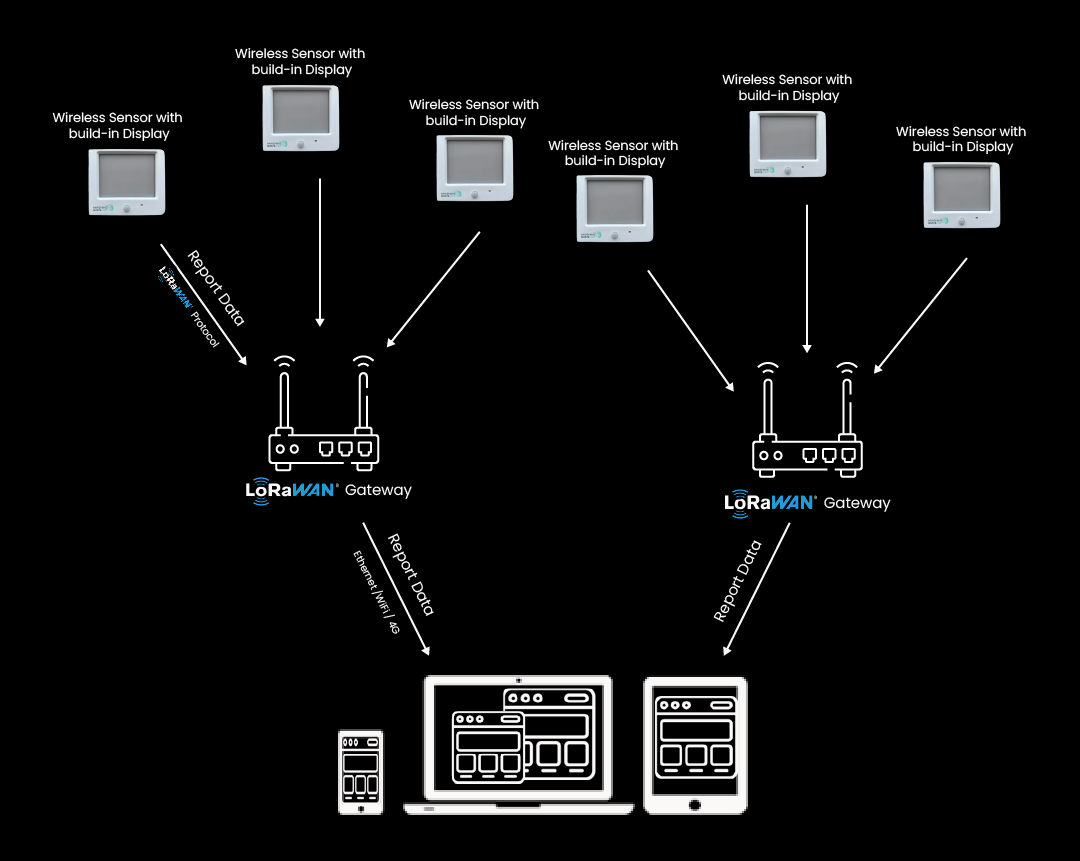

Architecture
This productAiroCheck Eco Monitor with DisplayThis productAiroCheck Eco Monitor with DisplayThis productAiroCheck Eco Monitor with Display
The AiroCheck Eco Monitor air quality sensors employ cutting-edge communication
technology, LoRaWAN which provides low power consumption as well as long range
signal propagation to enable real-time control and monitoring.
Our smart gateway collects near real-time data from all wireless sensors within range,
converts it into an easy-to-use JSON format, and publishes it via the MQTT protocol.
Data can be transmitted to any local or cloud MQTT broker through Ethernet, LTE (4G),
or WIFI.
Integration to Building Management System (BMS) can be achieved using an external
MQTT to BACnet converter
Specifications
| General | |
|---|---|
| Power Input | 5V DC |
| Material | ABS flame-retardant shell |
| Operating temperature | -10 °C to +60 °C |
| Relative Humidity | 0% to 95%RH |
| Environment | Indoor |
| IP Class | IP30 |
| Mounting Options | Wall Mounted |
| Dimensions (HxWxD) | 100 x 110 x 47 mm |
| Display | Black & White E-Ink Screen |
| Sensor Calibration | Not Required (with auto calibration algorithm) |
| Wireless Communication | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | EU868 (868 Mhz) |
| Transmit Range | 500m inside Building, 2KM Open Air |
| Security | 128 AES Encryption |
| Data Format | JSON |
| Device Class | Class C |
| Activation Method | OTAA (Over-The-Air Activation) |
| Sensors | ||||
|---|---|---|---|---|
| Parameters | Resolution | Range | Accuracy | Operating Principle |
| Carbon Dioxide (CO2) | 1 ppm | 400 ppm ~ 5000 ppm | ±(50 ppm + 3% reading) | Digital NDIR |
| TVOC | 0.001mg/m3 | 0 ~ 5 mg/m3 | ≤±10% Reading | MEMS |
| PM2.5 | 1 μg/m3 | 0 ~ 1000 μg/m3 | ≤±10% Reading | Laser Scattering |
| PM10 | 1 μg/m3 | 0 μg/m3 ~ 1000 μg/m3 | ±10% Reading | Laser Scattering |
| Temperature | 0.1°C | -40 ~100 °C | <±0.2°C | MEMS |
| Humidity | 0.1%RH | 0 ~ 99% | ≤±2% RH | MEMS |
| Ozone (O3) | 0.001 ppm | 0 ppm ~ 10 ppm | ≤±2% Reading | Electrochemical |
| Lux | 1 Lux | 0 ~ 65535 Lux | ≤±7% Reading | Photodiode |
| Atmospheric Pressure | 0.1Kpa | 30 ~ 110Kpa | ≤±0.15Kpa | MEMS |
| Motion | |
|---|---|
| Operating Principle | Passive infrared (PIR) |
| Status | Vacant/Occupied |
| Detection | 80° Horizontal & 60° Vertical |
| Life Expectancy of Each Sensor | |
|---|---|
| T, RH, TVOC, CO2, | 10 Years |
| Light, Noise | 3 Years |
| HCHO, O3 | 2 Years |
| PM 2.5, PM 10 | ≥ 40,000 hours |
| Standards | |
|---|---|
| Regulatory | CE |
| Environmental | RoHS |
