AiroCheck Ceiling Mount Air Quality Sensor
AiroCheck Eco Monitor Ceiling Mount is a wireless indoor air quality sensor for ceilings or walls. Versions measure 6, 7 or 10 parameters, including CO2, TVOC, PM2.5, PM10, ozone, temperature and humidity. It reports over LoRaWAN EU868, with Wi-Fi as an option, and feeds BuildOT One for live dashboards, alerts and reports.
| Power Input | 5V DC |
|---|---|
| Material | ABS flame-retardant shell |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -20 °C to +70 °C |
| Relative Humidity | 10% to 90% (non-condensing) |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
Where it sits in your building
This productAiroCheck Ceiling MountThis productAiroCheck Ceiling MountThis productAiroCheck Ceiling Mount
Measures environmental conditions, particulate matter, and pollutant gases with a single wireless sensor.
AiroCheck Eco Monitor is a customizable and compact indoor ambience monitoring sensor designed to measure parameters of air and thermal comfort.
The sensor wirelessly provides near real-time and exceptionally accurate data through low-power, long-range communication. Utilizing this data and dashboards facilitates the monitoring and reporting of air quality performance. Versions available include:
Eco Monitor 6 in 1: Sensor for monitoring temperature, humidity, CO2, TVOC, PM2.5 and PM10 levels.
Eco Monitor 7 in 1: Sensor for monitoring temperature, humidity, CO2, TVOC, PM2.5, PM10 and Ozone levels.
Eco Monitor 10 in 1: Sensor for monitoring temperature, humidity, CO2, TVOC, PM2.5, PM10, Ozone, Lux, Noise and Atmospheric Pressure levels.
The sensors within Eco Monitor can also be customized to measure other parameters such as Oxygen (O2), Hydrogen Sulfide (H2S), Methane (CH4), Carbon Monoxide, Nitrogen Dioxide (NO2), Sulphur Dioxide (SO2), Hydrogen Gas (H2), Ammonia (NH3).
Product Features
Customizable sensor configuration based on application requirement.
Wireless data transmission Option through LoRaWAN®, and/or WIFI wireless protocol
Secure operation with top-down encryption (Wireless models)
Easy Performance Management through MachineSens IoT Platform
Reports every 15 minutes (configurable)
Integration with Building Management System through MQTT
Communication Technology
The AiroCheck Eco Monitor air quality sensors employs cutting-edge communication technology, LoRaWAN which provides low power consumption as well as long range signal propagation to enable real-time control and monitoring.
Our smart gateway receives near real-time data from all the wireless sensors within range, converts the raw data into an easy-to-use JSON format, and then publishes it using MQTT protocol. Data can be sent to any local or cloud MQTT broker via Ethernet, LTE (4G), or WIFI.
Specifications
| General | |
|---|---|
| Power Input | 5V DC |
| Material | ABS flame-retardant shell |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -20 °C to +70 °C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Environment | Indoor |
| IP Class | IP20 |
| Mounting Options | Ceiling/Wall Mount |
| Mounting Height | 1.6m to 2m (Recommended) |
| Configuration | Via PC software |
| Battery Type* | Micro USB Rechargeable Lithium Polymer (LiPo) |
| Battery Life* | 1 to 2.5 Years (Every 15min/30 reading) |
| Wireless Communication | |
|---|---|
| Technology | LoRaWAN® (4G and Modbus RS-485 versions also available) |
| Frequency | EU868 (868 Mhz) license free |
| Transmit Range | 2KM in urban environment 22+ floors in a building |
| Security | 128 AES Encryption |
| Antenna | Internal |
| Data Format | JSON |
| Device Class | Class C |
| Activation Method | OTAA (Over-The-Air Activation) |
| Standards | |
|---|---|
| Regulatory | CE |
| Environmental | RoHS |
Metrology Parameters
| Sensors | ||||
|---|---|---|---|---|
| Parameters | Resolution | Range | Accuracy | Operating Principle |
| Carbon Dioxide (CO2) | 1 ppm | 400 ppm ~ 5000 ppm | ≤±10% Reading | Digital NDIR |
| Carbon Monoxide (CO) | 1 ppm | 0 ppm ~ 1000 ppm | ≤±3% Reading | Electrochemical |
| TVOC | 1 μg/m3 | 0 μg/m3 ~ 5000 μg/m3 | ≤±10%Reading | MEMS |
| Ozone (O3) | 0.001 ppm | 0 ppm ~ 10 ppm | ≤±2% Reading | Electrochemical |
| Formaldehyde (HCHO) | 0.001 mg/m3 | 0 ~ 1.5 mg/m3 | ≤±10% Reading | Electrochemical |
| Nitrogen Dioxide (NO2) | 0.1 ppm | 0 ppm ~ 1000 ppm | ≤±3% Reading | Electrochemical |
| Sulfur Dioxide (SO2) | 0.1 ppm | 0 ppm ~ 20 ppm | ≤±3% Reading | Electrochemical |
| PM2.5 | 1 μg/m3 | 0 μg/m3 ~ 999 μg/m3 | ≤±10% Reading | Laser Scattering |
| PM10 | 1 μg/m3 | 0 μg/m3 ~ 1000 μg/m3 | ≤±10% Reading | Laser Scattering |
| Temperature | 0.01°C | -40 ~ 100 °C | <±0.3°C | MEMS |
| Humidity | 0.04% | 0 ~ 100% | ±3% RH | MEMS |
| Life Expectancy of Each sensor | |
|---|---|
| TVOC, CO2 | 10 Years |
| Temperature, Humidity | 10 Years |
| Atmospheric Pressure | 10 Years |
| O3 | 2 Years |
| PM 2.5, PM 10 | ≥ 40,000 hours |

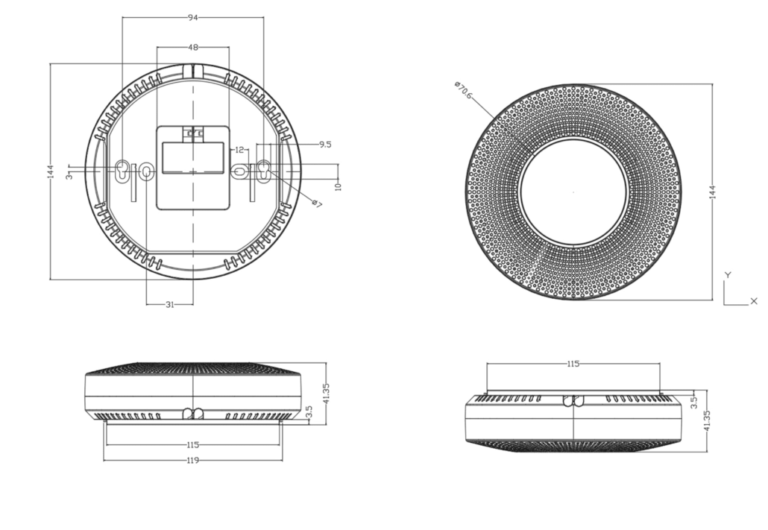

Product Dimensions
Frequently asked questions
Which version of the ceiling sensor should I choose?
How long does the battery last?
Where should the sensor be mounted?
How often does the sensor report data?
