ThermoSense
Wireless Communicating Thermostats
ThermoSense is a wireless touch-screen thermostat for fan coil units and DX terminal units. It measures room temperature and humidity, drives fan and valve relays, and sends data over NRF 2.4 GHz to a MachineSens gateway. BuildOT One then handles schedules, setpoint limits, remote control and BMS integration over BACnet or MQTT.
NRF 2.4 GHzWorks with BuildOT One
| Display Type | 4.3-inch Capacitive Touch Screen |
|---|---|
| Resolution | 480*272 Pixels Resolution |
| Power Input | 230V AC or 24V DC |
| Operating Voltage | 5V DC |
| Terminal Size | Up to 16 AWG/1.5 mm2 for Power & Relay connections |
Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.
Product Features
Upgrade your standalone HVAC Terminal units (FCUs/DXs) to a connected system, enhancing Indoor comfort monitoring.
NRF Communication for secure and fast data transmission
High Range Link: Up to 200m between IoT gateway and Thermostat
Secure operation with top-down encryption
Bi-directional communication for remote operation and control
Extra Large Color Capacitive Touch Screen
Scheduling capability for Energy Optimization
Centralized Control & Monitoring through Web App
Integration with Building Management System through BACnet/MQTT
Automatic or manual heating/cooling changeover
Minimum and maximum limitation of room temperature setpoint
Built-in Temperature and Humidity Sensor
Customizable to add additional Air Quality & Motion Sensors
System Architecture

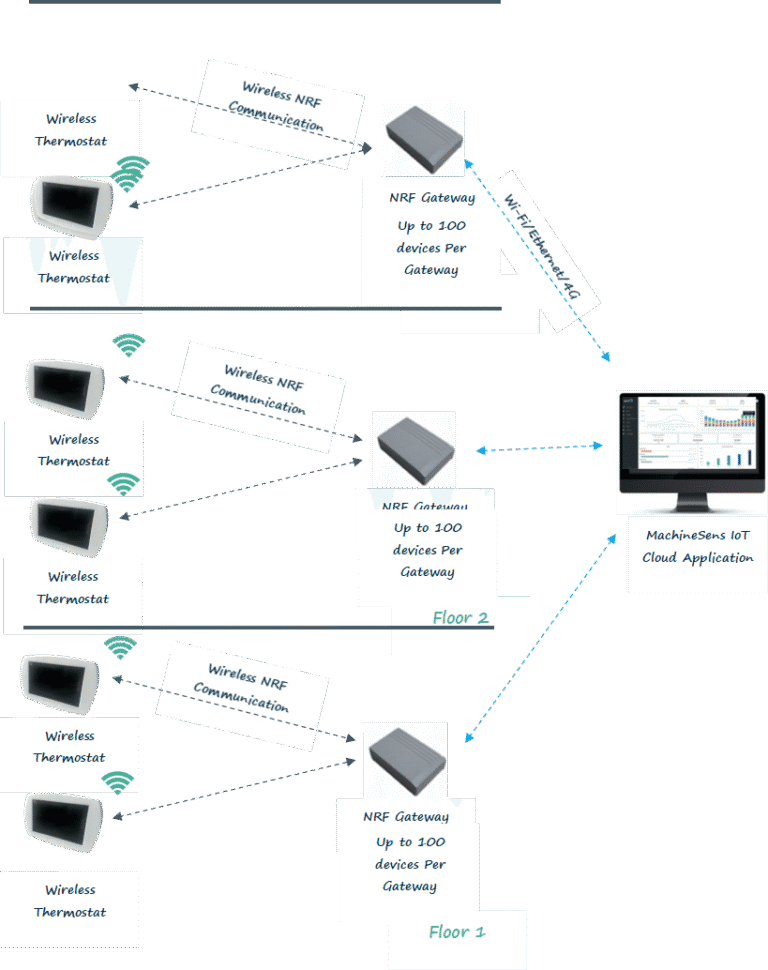

ThermoSense wireless intelligent thermostat leverages advanced NRF technology, ensuring high speed and long-range signal propagation for real-time control and monitoring.
In each room
Floor 3This productThermoSense Touch Screen Thermostat (FCU and DX)Fan coil, DX or AC unit
This productThermoSense Touch Screen Thermostat (FCU and DX)Fan coil, DX or AC unitFloor 2This productThermoSense Touch Screen Thermostat (FCU and DX)Fan coil, DX or AC unit
This productThermoSense Touch Screen Thermostat (FCU and DX)Fan coil, DX or AC unitFloor 1This productThermoSense Touch Screen Thermostat (FCU and DX)Fan coil, DX or AC unit
This productThermoSense Touch Screen Thermostat (FCU and DX)Fan coil, DX or AC unitNRF 2.4 GHz, up to 200 m
On each floor
Ethernet, LTE or Wi-Fi, MQTT
In the cloud
BuildOT One Comfort and ClimateSchedules, setpoint limits, reports
Your existing BMS (optional)BACnet or MQTT, through Pulse Convert+- Our smart gateway collects near real-time data from all wireless sensors within range, converts it into an easy-to-use JSON format, and publishes it via the MQTT protocol.
- Data can be transmitted to any local or cloud MQTT broker through Ethernet, LTE (4G), or WIFI.
- Integration to Building Management System (BMS) can be achieved using MQTT broker or through an external BACnet converter.
- ThermoSense wireless intelligent thermostats can be centrally controlled from MachineSens IoT Cloud Platform.
The MachineSens IoT Cloud Platform enables: –
- Monitoring & Control: ThermoSense wireless intelligent thermostat enables remote monitoring and control of the AC equipment.
- Data Analysis: IoT devices transmit this data to a cloud based central software system for real-time analysis and notifications.
- Optimal Setpoints: The IoT solution (Hardware + Software) enables automated or centralized control of the Terminal unit’s temperature to maintain comfort while minimizing energy consumption.
- Reporting: The system can generate energy usage reports (virtual metering), helping users understand their consumption patterns and make informed decisions.
- Programmed Schedules:Scheduling – Desired schedules can be programmed in the cloud-based software platform for control & monitoring. The IoT system can respond to demand response signals, reducing energy usage during peak periods. Specific times for system operation, such as when the HVAC should start or stop, temperature setting can be enabled or restricted.
The FCU and DX unit setpoints and operation can be optimized from the cloud platform.
Specifications
| Display | |
|---|---|
| Display Type | 4.3-inch Capacitive Touch Screen |
| Resolution | 480*272 Pixels Resolution |
| Electrical | |
| Power Input | 230V AC or 24V DC |
| Operating Voltage | 5V DC |
| Terminal Size | Up to 16 AWG/1.5 mm2 for Power & Relay connections |
| Sensors and Input | |
| Sensor Accuracy | Temperature: ±1°C Humidity: ±3% RH |
| Measuring Range | Temperature: -10 °C to +70 °C Humidity: 0% to 99% |
| Input (Optional) | 1 Universal Input (Analog Input or Dry Contact) |
| Outputs | 4 Digital Outputs (4 Relay*) 1 Relay Valve Outputs (1 Relay*) (*) 5A for resistive loads and 2A for inductive loads |
| Additional Sensors (Optional) | PIR Sensor for Motion TVOC, Atmospheric Pressure, eCO2 |
| General | |
| Operating temperature | 10 °C to +50 °C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Environment | Indoor |
| IP Rating | IP30 |
| Temperature Setting | 15 °C to 40 °C |
| Terminal Connections | Screw Terminals |
| Mounting | Flush Mounted (Standard EU Box) Surface Mounted |
| Dimensions (HxWxD) | Flush Mounted: 90 x145 x 34 mm Surface Mounted: 90 x145 x 43 mm |
| Housing Material | Flame retardant ABS and PLA |
| Wireless Technology | NRF 2.4 Ghz |
| Wireless Communication (NRF) | |
| Protocol | Enhanced ShockBurst (ESB) |
| Frequency | 2.4 Ghz (ISM Band) |
| Transmit Range | Up to 200m |
| Operating Voltage | 3.3V |
| Current Consumption | Transmit Mode: Typically, around 115 mA Receive Mode: Typically, around 45 mA Power-Down Mode: Low power consumption when not in use |
| Output Power (PA) | Adjustable (OdBm, -6dBm, -12dBm, -18dBm) |
| Receiver Sensitivity (LNA) | Around -85 dBm in 2 Mbps mode. Sensitivity may vary based on the data rate and modulation settings |
| Data Rates | Selectable data rates (e.g., 250 kbps, 1 Mbps, 2 Mbps) |
| Interface | SPI (Serial Peripheral Interface) for communication with a microcontroller |
| Modulation | GFSK (Gaussian Frequency Shift Keying) modulation |
| Data Format | JSON |
Frequently asked questions
What can the ThermoSense thermostat control?
It has 4 relay outputs for fan control and 1 relay for the valve, with automatic or manual heating and cooling changeover and minimum and maximum setpoint limits.
How does it integrate with a BMS?
The gateway publishes thermostat data over MQTT. A BMS can read it from the MQTT broker or through an external BACnet converter such as Pulse Convert+.
How is it powered and mounted?
It takes 230V AC or 24V DC and can be flush mounted in a standard EU box or surface mounted.
