TrueContact Door Sensor
Predictive maintenance

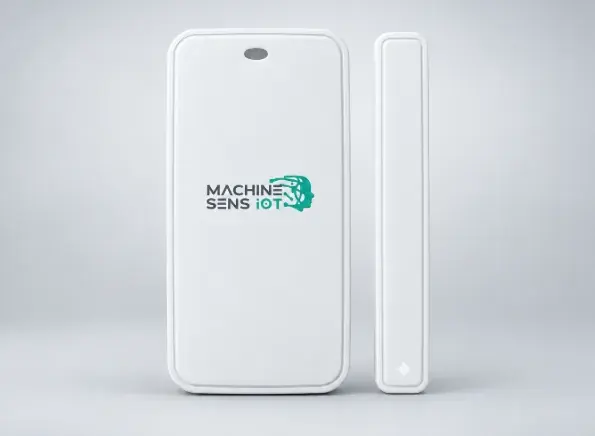

TrueContact: Battery Operated LoRaWAN Contact Sensor

TrueContact from MachineSens IoT is a compact, battery operated LoRaWAN magnetic contact sensor for doors, windows, cabinets and access panels. It reports open and close events to the BuildOT One platform, so teams know the state of an opening without a site visit.

LoRaWAN EU868Works with BuildOT One
MeasuresOpen or close state (magnetic contact)
ConnectivityLoRaWAN (EU868)
PowerBattery powered
IP ratingIP54
Contact gap20 mm

Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.

Request a project quoteAll specifications

Where it sits in your building

In the building
Floor 3
TrueContact wireless door contact sensor by MachineSens IoTThis productTrueContact Door Sensor
Floor 2
TrueContact wireless door contact sensor by MachineSens IoTThis productTrueContact Door Sensor
Floor 1
TrueContact wireless door contact sensor by MachineSens IoTThis productTrueContact Door Sensor
LoRaWAN EU868
On site
Edge Lite indoor LoRaWAN gateway by MachineSens IoTEdge Lite Indoor LoRaWAN GatewayEdge Lite indoor or Edge Pro outdoor
Ethernet, Wi-Fi or LTE
In the cloud
BuildOT One Predictive CenterFault alerts before failures
SpecificationDetail
MeasuresOpen or close state (magnetic contact)
ConnectivityLoRaWAN (EU868)
PowerBattery powered
IP ratingIP54
Contact gap20 mm
MountingWall or frame mounted, or adhesive
IndicatorStatus and Join LED
PlatformBuildOT One

What the TrueContact Magnetic Contact Sensor does

  • Reports events.It sends a message when the state changes, so batteries last longer.
  • Monitors openings.Doors, windows, cabinets and plant room panels are all covered.
  • Installs quickly.Fix it to a frame or wall, or use adhesive where drilling is not allowed.
  • Shows status.The LED confirms joining and operation during commissioning.

Where it is used

Plant rooms, electrical cabinets, riser doors, windows in conditioned spaces and storage areas in UAE and GCC offices, hotels, malls and campuses. An open window or a door left ajar wastes cooling, and a door log helps with access checks.

Works with BuildOT One

See the full range in Predictive Maintenance Sensors. Related products: Condition Monitoring Sensor and AquaSense Leak Sensor.

Frequently asked questions

How far apart can the sensor and magnet be?
The contact gap is 20 mm.
Does it need wiring?
No. It is battery powered and reports over LoRaWAN.
Is it suitable for outdoor use?
It is rated IP54, which suits protected locations. Check the install position with our team.
