AiroCheck Duct Sensor for HVAC Air Quality

Eco Monitor 3 in 1 Wireless Battery-operated duct sensor.

LoRaWAN EU868Works with BuildOT One

Detection Parameters	Temperature (T), Humidity (RH), Carbon Dioxide (CO₂)
Measuring range	Temperature: -20 °C to +60 °C
	Humidity: 0 to 100%RH
	Carbon Dioxide: 400 ~ 5000ppm
Measuring accuracy – Temperature	±0.5 °C @ -20 °C to +60 °C

Supplied for building projects and made to order. Priced per project, including devices, gateways and setup.

Request a project quote All specifications

Where it sits in your building

AiroCheck wireless duct air quality sensor by MachineSens IoT

The AiroCheck duct sensor is a wireless, battery-powered air quality sensor that mounts on a duct or AHU. It measures temperature, humidity and CO2 in the supply or return air and sends readings over LoRaWAN EU868 to a MachineSens gateway. Data flows into BuildOT One for dashboards, alerts and BMS integration.

Measures air and thermal comfort with a single sensor.

AiroCheck Eco Monitor is a customizable and compact wireless indoor air quality sensor designed to measure and monitor various parameters in the air to assess the quality of the air we breathe.

These sensors are valuable tools for detecting and quantifying environmental conditions, pollutants, and particulate matter, providing near real-time or periodic data on air quality conditions.

The Eco Monitor 3 in 1 Duct sensor delivers and transmits highly accurate data wirelessly through low-power long-range communication. The sensor data and dashboards help monitor and report air quality performance.

The sensors within Eco Monitor can also be customized and configured to parameters to measure Dust, PM1, PM2.5, PM 10, Formaldehyde (HCHO), Carbon Dioxide (CO₂), Temperature, Humidity, Atmospheric Pressure, TVOC, Ozone (O₃), Oxygen (O₂), Hydrogen Sulfide (H₂S), Methane (CH₄), Carbon Monoxide (CO), Nitrogen Dioxide (NO₂), Sulphur Dioxide (SO₂), Hydrogen Gas (H₂), Ammonia (NH₃) and THI for swift assessment of environmental conditions that may affect microbial activity such as bacteria and fungi.

Product Features

Customizable sensor configuration based on application requirement.

Wireless data transmission Option through LoRaWAN®, and/or WIFI wireless protocol

Secure operation with top-down encryption

Easy Performance Management through MachineSens IoT Platform

Battery Operated (Rechargeable)

Integration with Building Management System through protocol converters

AiroCheck Air Quality Duct Sensor

Communication Technology

The AiroCheck Eco Monitor air quality sensors employs cutting-edge communication technology, LoRaWAN which provides low power consumption as well as long range signal propagation to enable real-time control and monitoring.

Our smart gateway receives near real-time data from all the wireless sensors within range, converts the raw data into an easy-to-use JSON format, and then publishes it using MQTT protocol. Data can be sent to any local or cloud MQTT broker via Ethernet, LTE (4G), or WIFI.

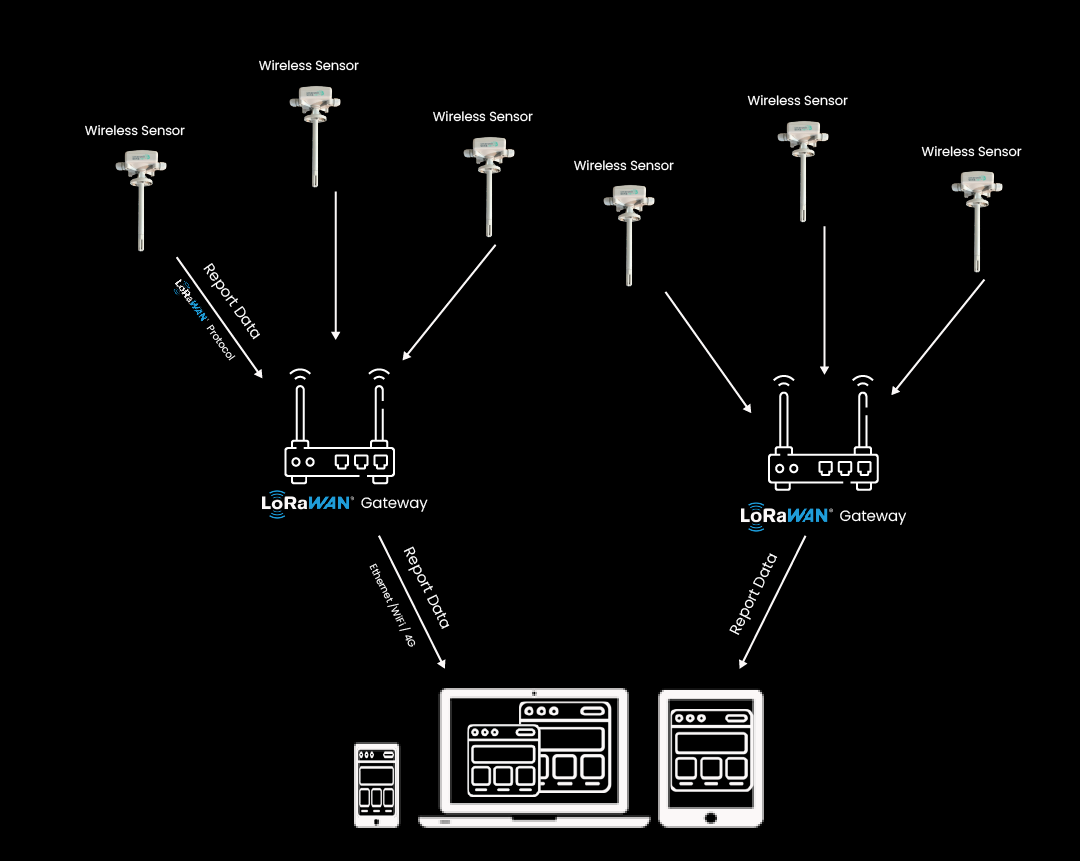

AiroCheck duct sensor LoRaWAN architecture

Specifications

General
Detection Parameters	Temperature (T), Humidity (RH), Carbon Dioxide (CO₂)
Measuring range	Temperature: -20 °C to +60 °C
	Humidity: 0 to 100%RH
	Carbon Dioxide: 400 ~ 5000ppm
Measuring accuracy – Temperature	±0.5 °C @ -20 °C to +60 °C
Measuring accuracy – Humidity	±3.5% RH (within 30%RH to 80% RH range @ 25 °C)
Measuring accuracy – Carbon Dioxide	± (50ppm + 5% Reading value)
IP Class	IP54
Environment	Indoor
Housing Material	Polycarbonate base, cover, immersion rod and filter cap
Operating temperature	-10 °C to +55 °C
Storage temperature	-20 °C to +70 °C
Relative Humidity	10% to 95% (non-condensing)
Installation	On to a duct or AHU
Power Supply	3.7V LiPo Battery (Rechargeable)

Wireless Communication
Technology	LoRaWAN®
Frequency	EU868 (868 Mhz)
Transmit Range	500m inside Building, 2KM Open Air
Security	128 AES Encryption
Data Format	JSON
Device Class	Class A
Activation Method	OTAA (Over-The-Air Activation)

Standards
Regulatory	CE
Environmental	RoHS

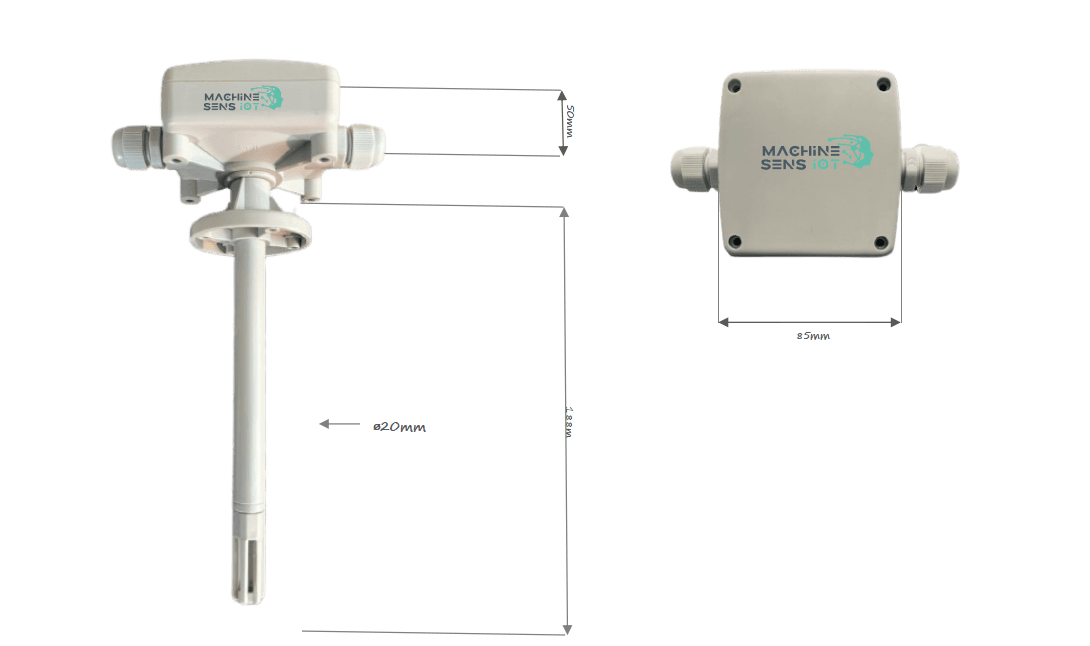

Product Dimensions

BuildOT One Air Quality and Wellbeing module AiroCheck Eco Monitor 2/3/4-in-1 Edge Lite indoor LoRaWAN gateway

Frequently asked questions

What does the duct sensor measure?

It measures temperature from -20 to +60 °C, humidity from 0 to 100% RH and CO2 from 400 to 5000 ppm inside a duct or AHU.

How long does the battery last?

The rechargeable 3.7V LiPo battery lasts about 1 year.

How far can the duct sensor transmit?

Over LoRaWAN EU868 it reaches up to 500 m inside a building and 2 km in open air, with 128-bit AES encryption.
