Eco Monitor Outdoor Sensor (Custom)
Eco Monitor 3 in 1 Wireless Battery-operated duct sensor.
Measures environmental conditions, particulate matter,. pollutant and noise gases with a single wireless sensor.
AiroCheck Eco Monitor Outdoor is a 6 in 1 outdoor air quality sensor designed for the measurement of Temperature, Humidity, CO2, TVOC, PM2.5 and Noise levels.
These sensors are valuable tools for detecting and quantifying environmental conditions, pollutants, and particulate matter, providing near real-time or periodic data on air quality conditions.
The sensor wirelessly provides near real-time and exceptionally accurate data through low-power, long-range communication. Utilizing this data and dashboards facilitates the monitoring and reporting of air quality performance. Versions available include:
The sensors within Eco Monitor can also be customized to measure other parameters such as Oxygen (O2), Hydrogen Sulfide (H2S), Methane (CH4), Carbon Monoxide, Nitrogen Dioxide (NO2), Sulphur Dioxide (SO2), Hydrogen Gas (H2), Ammonia (NH3).
Product Features
Can integrated 10 types of sensors at the sam
Wireless data transmission Option through 4G
Secure operation with top-down encryption (Wireless models)
Easy Performance Management through MachineSens IoT Platform
Accurate detections and sensitive response
Integration with Building Management System through MQTT & Modbus
Aquacheck Air Quality - Duct Sensor

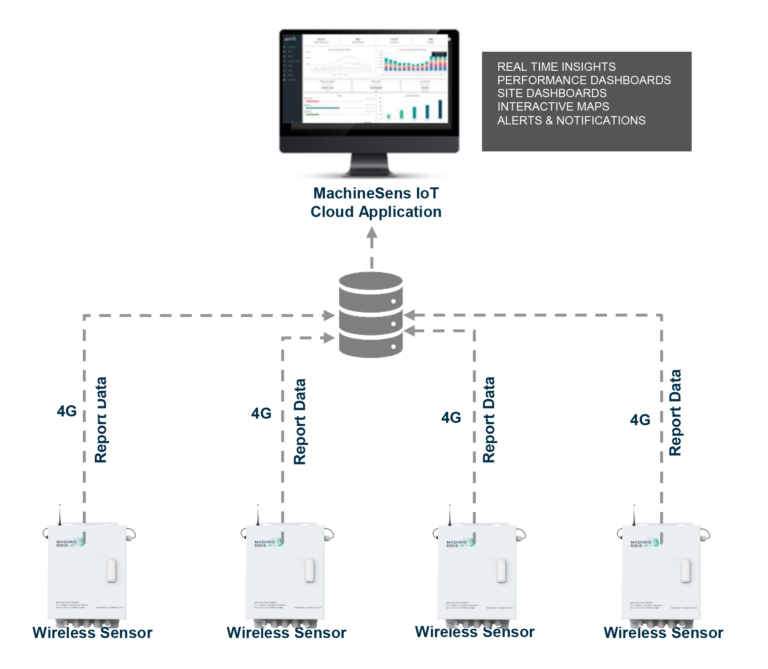

Architecture
The AiroCheck Eco Monitor air quality sensors utilize advanced 4G communication technology to directly report real-time data to a cloud MQTT Server and the MachineSens IoT Cloud Application.
This enables continuous real-time monitoring and data insights.
Each sensor sends real-time data through 4G, eliminating the need for a local gateway.
The raw data is directly converted into an easy-to-use JSON format and published using the MQTT protocol.
This streamlined architecture ensures efficient and timely data transmission for enhanced air quality monitoring and analysis.
Specifications
General | |
| Power Input | 110V-230V AC (UK Plug) |
| Material | ABS Flame Redundant Shell |
| Operating temperature | -10 °C to +60 °C |
| Relative Humidity | 0% ~ 100% |
| IP Rating | IP55 |
| Mounting | Wall Mount |
| Configuration | Via PC software |
| Sensor Calibration | Sensor Calibration Not Required (with auto calibration algorithm) |
| Configuration Interface | RS485 |
Wireless Communication | |
| Technology | 4G |
| Data Format | JSON |
| Device Class | Class C |
| Activation Method | OTTA (Over-The-Air-Activation) |
Sensors | ||||
| Parameters | Resolution | Range | Accuracy | Operating Principle |
|---|---|---|---|---|
| Temperature | 0.1°C | 40 ~ 100 °C | ±0.5°C | MEMS |
| Humidity | 0.1% | 0 ~ 100% | ±3% RH | MEMS |
| Carbon Dioxide (CO2) | 1 ppm | 400 ppm ~ 5000 ppm | ± (50ppm +3%) | Digital NDIR |
| PM2.5 | 1 μg/m3 | 0 μg/m3 ~ 1000 μg/m3 | ±10% Reading | Laser Scattering |
| TVOC | 1 μg/m3 | 0 μg/m3 ~ 5000 μg/m3 | ±10% Reading | MEMS |
Noise | |
| Temperature Range | -40 °C to 85 °C |
| Open Loop Gain AVOL | 125dB (RL = 100kΩ) |
| Rejection Ratio | 112dB PSRR & 126 dB CMRR |
Life Expectancy of Each Sensor | |
| T, RH, TVOC, CO2, | 10 Years |
| Noise | 3 Years |
| PM 2.5 | ≥ 40,000 hours |
Certifications | |
| Regulatory | CE |
| Environmental | RoHS |
Pin Definition | ||
| PIN | Definition | Description |
| A1 | RS485_A1 | Interface for configuring communication parameters |
| GND | GND | |
| B1 | RS485_B1 | |
Cautions
⦁ The sensors should avoid contact with organic solvents (including silicon and other adhesives), coatings, chemicals and oils.
⦁ The sensor should not be subjected to excessive shock or vibration.
⦁ Do not install the sensor in a strong convection air environment.
⦁ The sensor cannot be used in an environment containing corrosive gases for a long time. Corrosive gases may damage the sensor.
⦁ The sensor must not be completely encapsulated in resin or immersed in an oxygen-free environment; otherwise, the performance of the sensor will be damaged.
⦁ If the sensor needs to be installed in a small space, the space should be well ventilated.

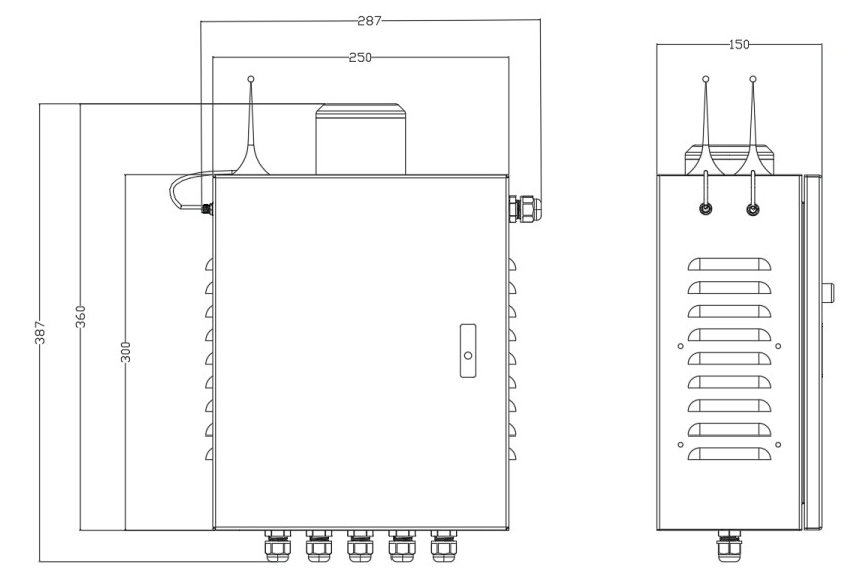

Product Dimensions
