ThermoSense NRF Split AC Controller
A clever start to efficient cooling that helps decrease your energy costs.
MachineSens IoT® ThermoSense NRF Split AC controller is a high-tech, plug-and-play intelligent device that offers centralized monitoring and management of heating and cooling system in offices, homes, and apartments. It is designed to work with a wide range of Split AC units.
These IoT-enabled intelligent controllers, compatible with various vendors and designed for most HVAC systems, offer automated and centralized energy management for your property, contributing to a 15% to 20% reduction in energy expendituresanalysis of critical assets such as pumps, motors, fans, compressors, HVAC systems
and others,
Product Features
Plug-and-play installation
for easy setup
NRF communication
for secure and fast data transmission
Centralized monitoring and control
for efficient management through web app
Scheduling capability
for Energy optimization
Integratable with existing building management systems
(BMS)
Discrete Sensor Interface
for precise monitoring
ThermoSense NRF Split AC Controller

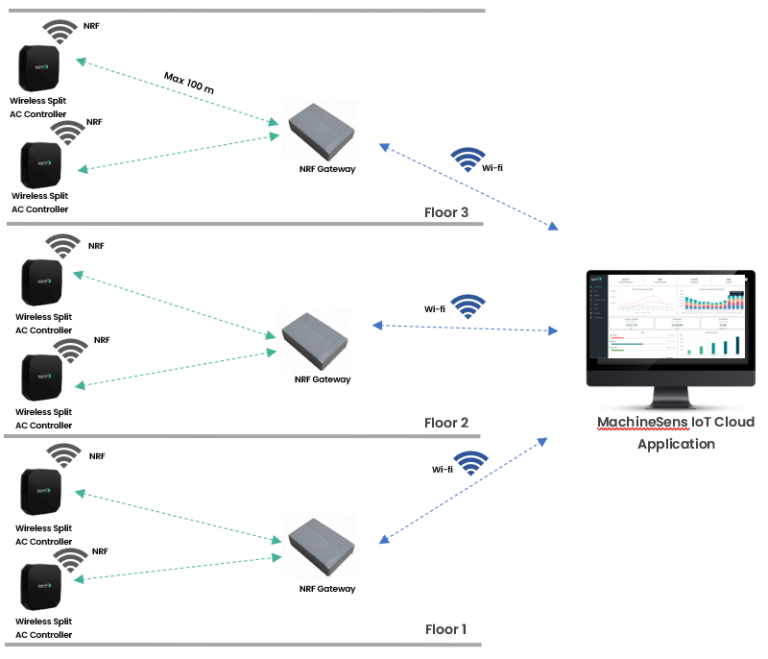

System Architecture
Our intelligent gateway gathers near real-time data from all wireless split AC controllers within its range. It converts the raw data into a user-friendly JSON format and publishes it using the MQTT protocol. This data can be transmitted to either a local or cloud MQTT broker through Ethernet, LTE (4G), or WIFI.
Specifications
General |
|
| Power Input | 5V DC (Micro USB) |
| Material | ABS Plastic |
| Operating temperature | -10 °C to +55 °C |
| Storage temperature | -20 °C to +70 °C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Environment | Indoor |
| IP Class | IP20 |
| Mounting Options | Wall Mounted |
| Dimensions (HxWxD) | 99mm x 99mm x 25 mm |
| Configuration | Via PC software |
| Sensor Technology | Infra-red |
| Compatibility | All Split Units featuring independent control of both compressor and fan |
| Enclosure Type | Network enclosure |
Wireless Communication NRF | |
| Protocol | Enhanced ShockBurst (ESB) |
| Frequency | 2.4 Ghz (ISM Band) |
| Transmit Range | Up to 100m |
| Operating Voltage | 3.3V |
| Current Consumption | Transmit Mode: Typically, around 115 mA Receive Mode: Typically, around 45 mA Power-Down Mode: Low power consumption when not in use |
| Output Power (PA) | Adjustable (OdBm, -6dBm, -12dBm, -18dBm) |
| Receiver Sensitivity (LNA) | Around -85 dBm in 2 Mbps mode. Sensitivity may vary based on the data rate and modulation settings |
| Data Rates | Selectable data rates (e.g., 250 kbps, 1 Mbps, 2 Mbps) |
| Interface | SPI (Serial Peripheral Interface) for communication with a microcontroller |
| Modulation | GFSK (Gaussian Frequency Shift Keying) modulation |
| Data Format | JSON |
